LH1100 Automatic Coating Machine

The LH1100 was designed specifically for use with AquaSurTech OEM's D200 & D100 paint formulations.

Paint Your Doors Automatically

1/ Improve Productivity and Quality 2/ Reduce Coating Costs Designed to coat composite doors, the LH1100 is also capable of coating PVC window boxes, and pre-cut lineals up to 8 ft. long.

1-2 operators (not painters) required to handle profiles

Specifications include:

  • Max. painting coverage is 98" L x 43" W
  • Footprint: 15' L x 14' W x 10' H
  • Weight: Approx. 4,000lbs
  • Spray gun speed up to 15 m/min
  • ADTECH 5 AXIS CONTROL SYSTEM
  • Discrete mode has capability of flipping doors for 2-sided painting
  • Optional Conveyor Mode accepts continuous feed of doors
  • Applies coating evenly over multiple passes for optimum finish and uniform thickness
  • Saves coating by optimizing spray trajectory, bypassing cut outs
  • Multi axis control optimizes coverage in recessed areas
  • Exhaust and air intake system included
  • Training and installation included
  • F.O.B Toronto, shipping fees extra
  • 6-8 week lead time from Purchase Order

    VIDEOS

    KOLORBOND PCT 3000 DRYING TUNNEL WITH 36 SHORTWAVE BAKING LIGHTS 1

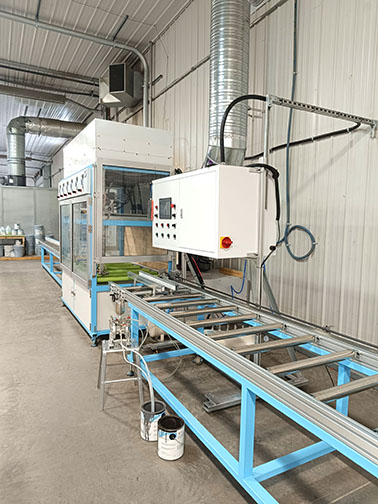

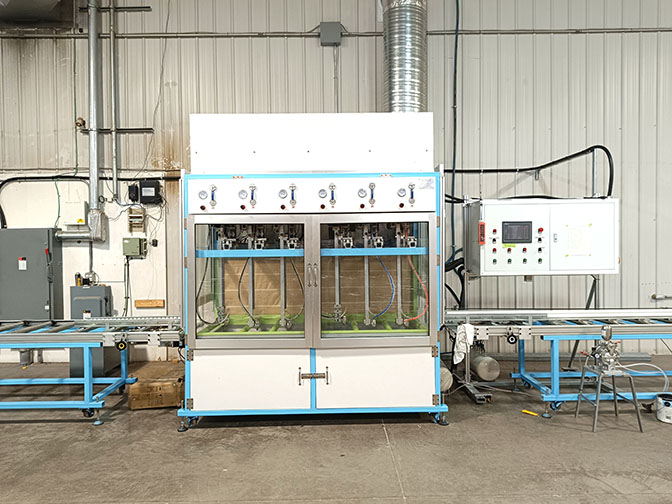

    Kolorbond LPM 800 R2 Lineal Profile Cleaning Machine Removes excess wax, oils and other elements 2A
